Jubail Industrial City, eastern region of Kingdom of Saudi Arabia

Chemical & Petrochemical


12 industrial production site buildings with a area total surface of 47.000 sqm in Apoc plant in KSA.

Activities performed

MULTIDISCIPLINARY project: BIM MEP and special systems Detail Design in Mechanical, Instrumental, Electrical & Automation fields. The 3D Models MEP Level equivalent to LOD 350.

Period of performance

2021 – 2022

Project description

The 12 industrial buildings included: Production Buildings, Storage warehouse and silos, Electrical sub-stations, Logistics and workshop facilities, Administrative and dispatch office buildings, Other services facilities.

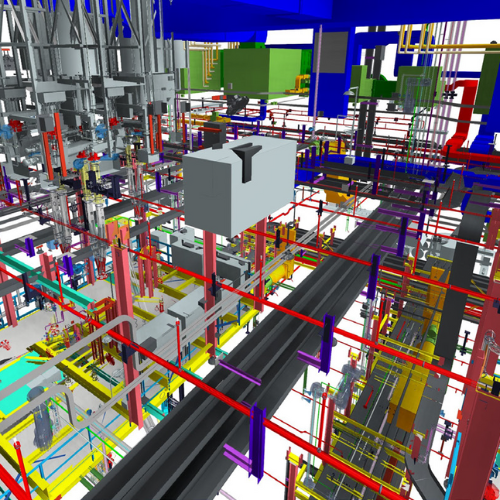

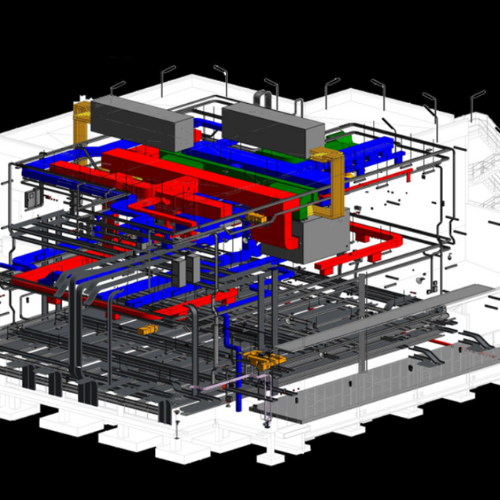

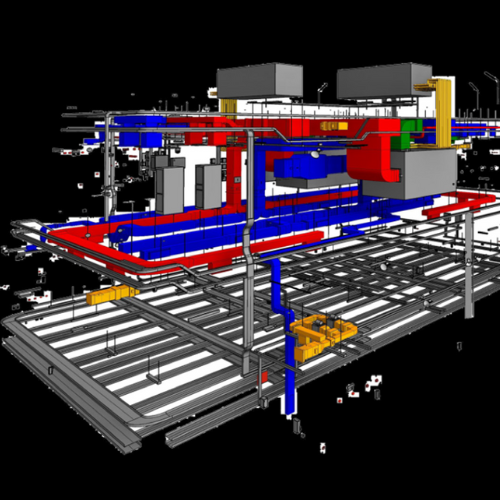

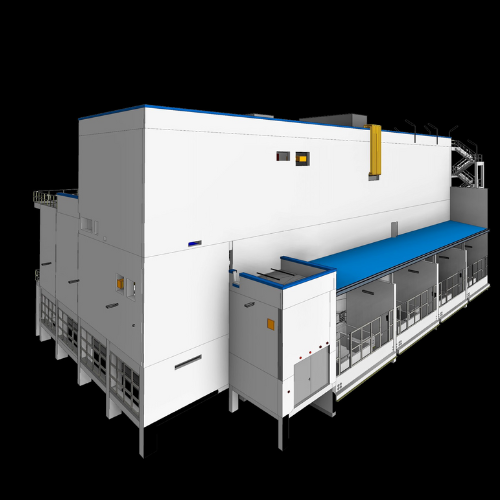

The Detailed Design was based on a 3D Model developed in REVIT and it was focused on information required for direct procurement of items and sub-contracting of overall assembly activities.
The Consultant provided assistance during the procurement phase: Technical Bid Evaluation of Vendor Offers, Technical support during Q&A and Final review of Bid Technical Specification.
